BRAHMA T11/M IGNITION TRANSFORMER
Brahma T11/M ignition transformer, 1x9 kV, 20 mA, 220–230V; a reliable choice for industrial burners and boilers requiring stable ignition.
Product Introduction

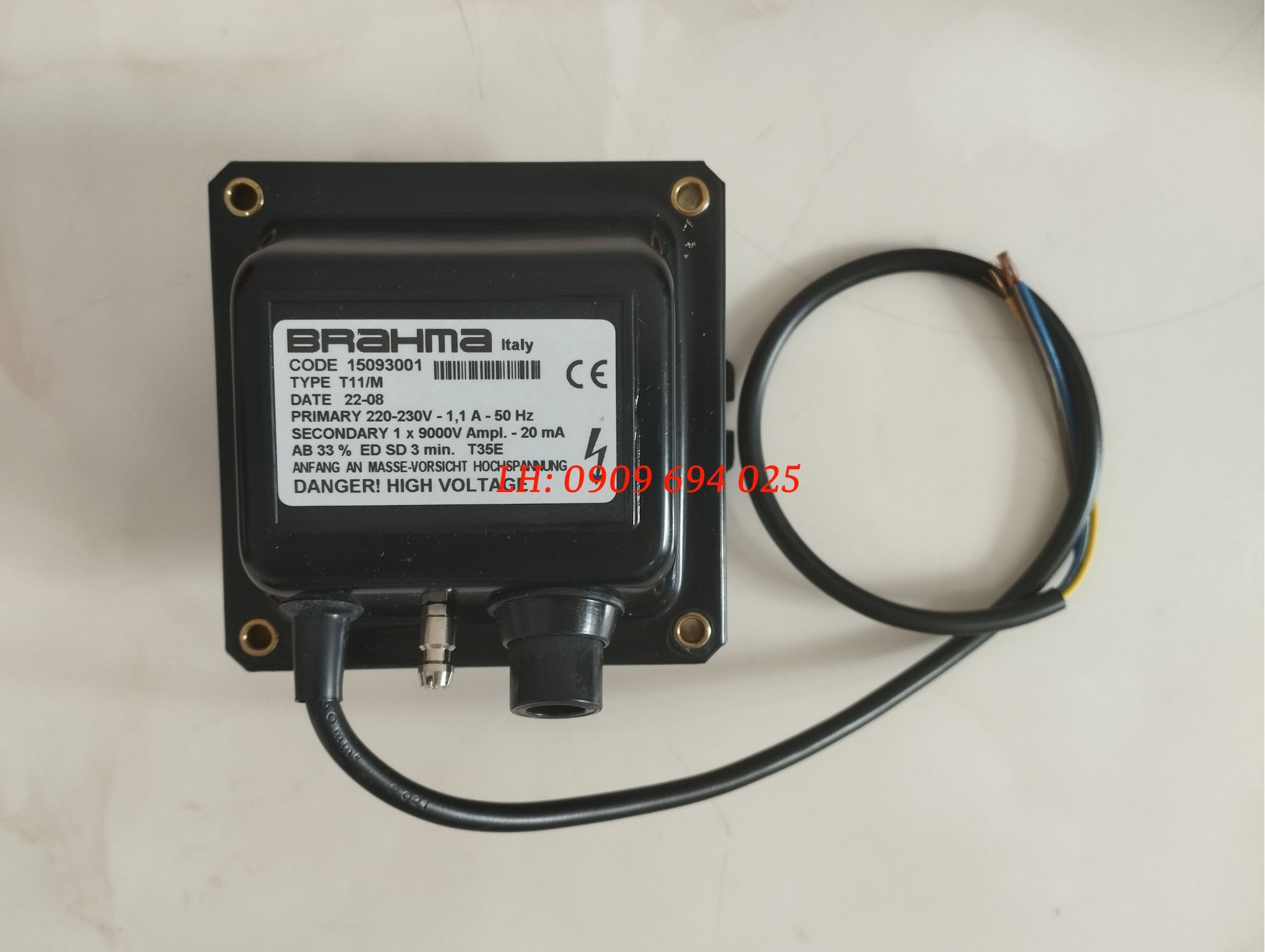

Brahma T11/M Induction Ignition Transformer is an induction ignition transformer belonging to the Brahma T11/T13/T16/T17 Series, designed for burner systems using gaseous or liquid fuels. The device is capable of generating high ignition voltage, providing stable energy for spark formation during the ignition process.
The Brahma T11/M Ignition Transformer features a single-pole output configuration and operates with a 33% duty cycle for 3 minutes. It is suitable for applications requiring high discharge power and long ignition cables in gas burner and oil burner systems.
Technical Specifications of Brahma T11/M Ignition Transformer
| Specification | Details |
| Brand | Brahma |
| Series | T11/T13/T16/T17 Series |
| Model | T11/M |
| Product ID | 15093001 |
| Device Type | Induction Ignition Transformer |
| Number of Poles | 1 |
| Power Supply | 220–230 V / 50 Hz |
| Output Peak Voltage | 1 × 15 kV |
| Effective Output Voltage | 1 × 9 kV |
| Effective Output Current | 20 mA |
| Effective Input Current | 1.1 A |
| Operating Mode | Intermittent operation |
| Duty Cycle | 33% for 3 minutes |
| Power Consumption | 240 VA |
| Weight | 2 kg |
Operating Principle
The Brahma T11/M Ignition Transformer operates based on electromagnetic induction principles to convert the input voltage into high voltage output. The generated high voltage supplies energy to the ignition electrode, creating an electric spark for burner flame ignition.

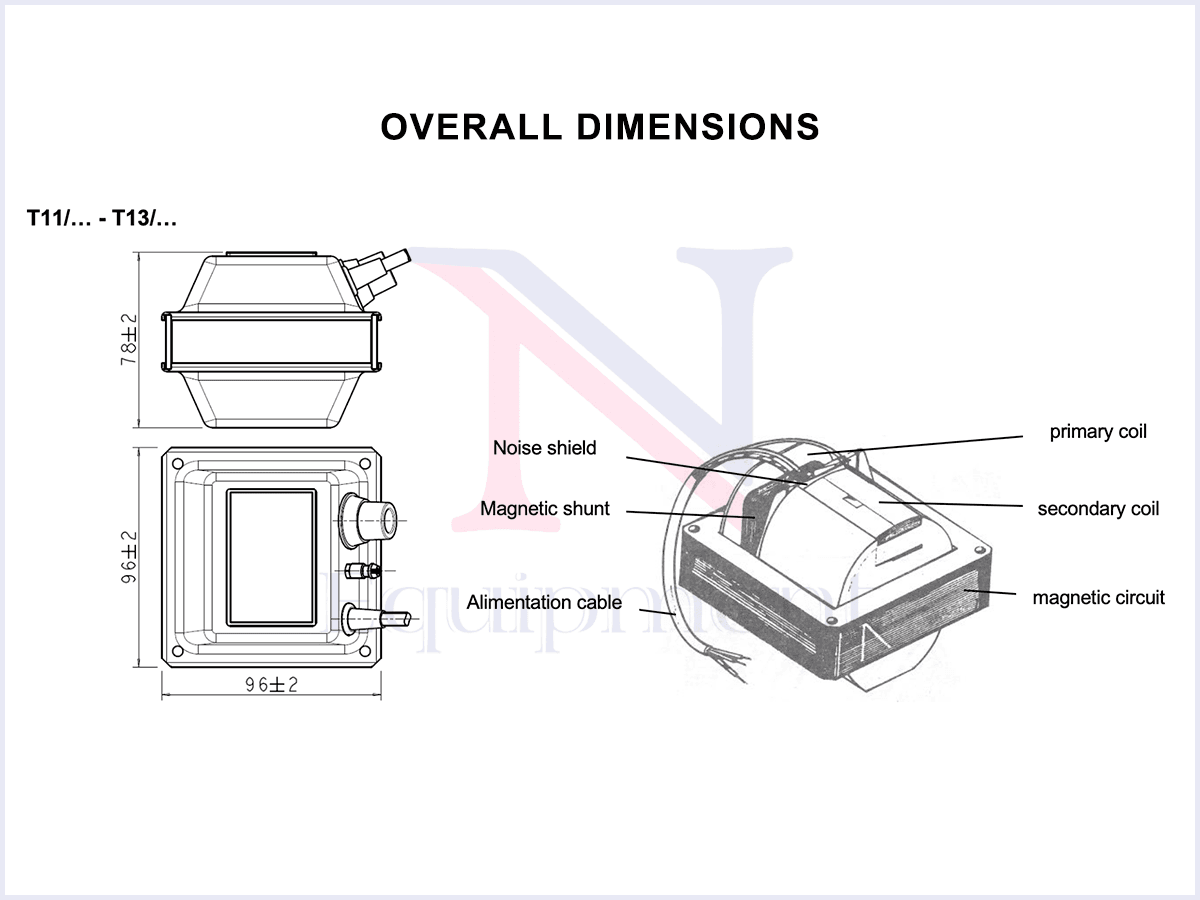

The Brahma T11/T13/T16/T17 Series Ignition Transformers are designed with a mantle-type magnetic circuit, where the secondary winding is connected to ground at the midpoint and equipped with a shielding layer for noise reduction. This shielding layer should be connected to a suitable grounding system to improve electromagnetic interference reduction during operation.
Comparison of Brahma T11/T13/T16/T17 Series Versions
The Brahma T11/T13/T16/T17 Series includes different configurations based on the number of poles, output voltage, operating mode, and power consumption. The table below highlights the main differences between each version within the same series.
| Model | Number of Poles | Output Peak Voltage | Effective Output Voltage | Output Current | Duty Cycle | Power Consumption |
| T11 | 1 | 1 × 15 kV | 1 × 9 kV | 20 mA | 33% for 3 minutes | 240 VA |
| T13 | 1 | 1 × 12 kV | 1 × 8 kV | 16 mA | 100% | 145 VA |
| T16 | 2 | 2 × 8 kV | 2 × 5 kV | 20 mA | 33% for 3 minutes | 240 VA |
| T17 | 2 | 2 × 6 kV | 2 × 4 kV | 15 mA | 100% | 140 VA |
Applications of Brahma T11/M Ignition Transformer
The Brahma T11/M Ignition Transformer is suitable for systems requiring a single-pole ignition source with high discharge power, including:
- Gas burners.
- Oil burners.
- Combustion systems using gaseous or liquid fuels.
- Applications requiring long ignition cables.
- Systems requiring stable ignition power with high output performance.
