BRAHMA TD1LVCAF IGNITION TRANSFORMER
Brahma TD1LVCAF ignition transformer, 1x15 kV, 25 mA, 220–240V with EMC filter; suitable for reliable gas and oil burner applications.
Product Introduction

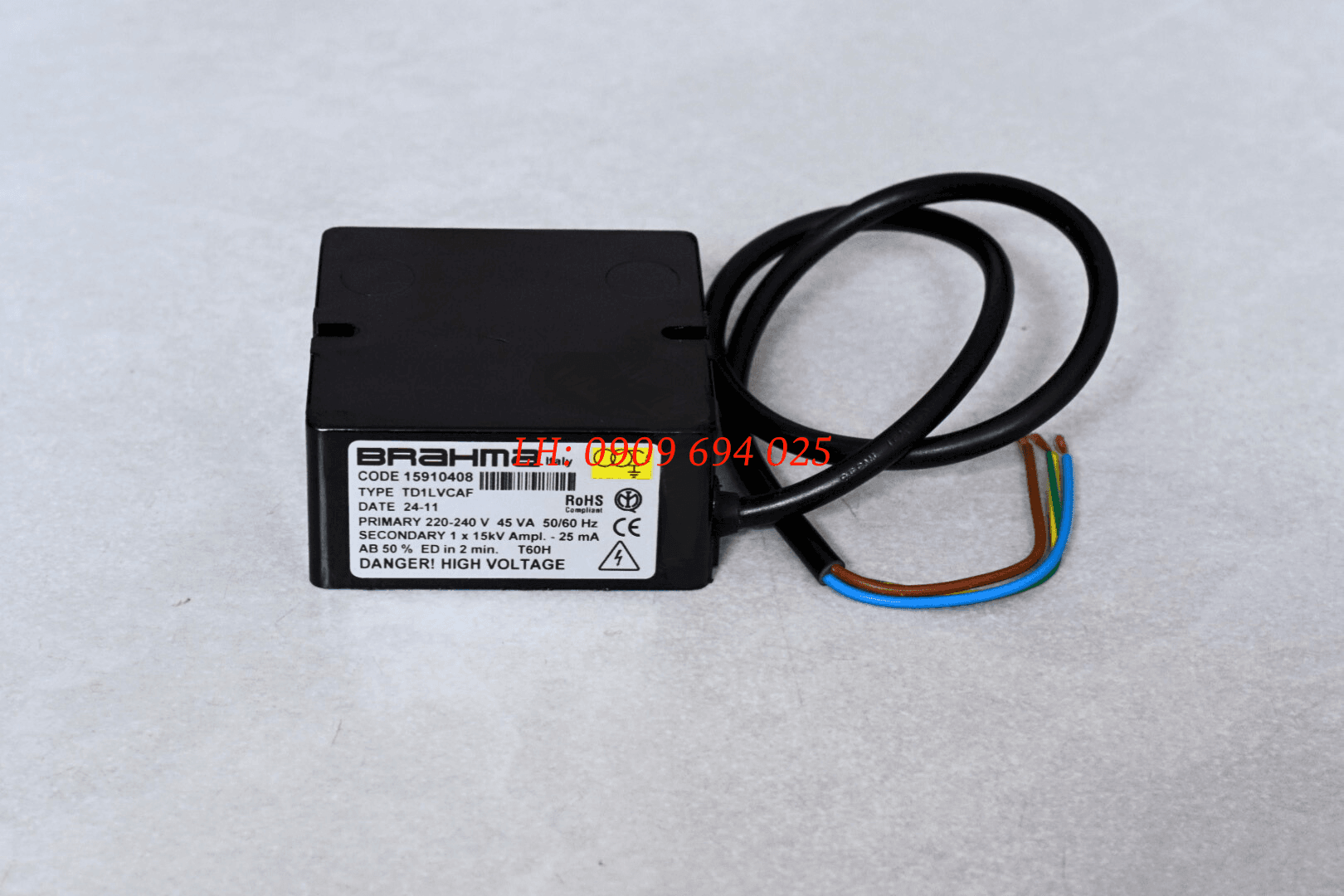

Brahma TD1LVCAF Electronic Ignition Transformer is a single-pole electronic ignition transformer belonging to the Brahma TD Series, integrated with an EMC filter to help reduce electromagnetic interference during operation. The device features a compact design and uses a high-frequency electronic oscillator combined with a ferrite core transformer to generate high voltage for the ignition process.
With a single-pole output configuration, the Brahma TD1LVCAF Electronic Ignition Transformer is designed for intermittent operation with a 50% duty cycle for 2 minutes, making it suitable for forced-draught gas burners, light oil burners, and heavy oil burners in residential and industrial applications.
Technical Specifications of Brahma TD1LVCAF Electronic Ignition Transformer
| Specification | Details |
| Brand | Brahma |
| Series | TD Series |
| Model | TD1LVCAF |
| Product ID | 15910408 |
| Number of poles | 1 |
| Power supply | 220–240 V / 50–60 Hz |
| Output voltage | 1 × 15 kV |
| Output current | 25 mA |
| Power consumption | 45 VA |
| Operating mode | Intermittent operation |
| Duty cycle | 50% for 2 minutes |
| EMC filter | Yes |
| Operating temperature | T60H |
Operating Principle
The Brahma TD1LVCAF Electronic Ignition Transformer operates based on a high-frequency electronic oscillator. The voltage generated by the oscillator is then increased through a ferrite core transformer to create high-voltage output, supplying energy to the ignition electrode and generating a spark for burner flame ignition.
The electronic structure allows the device to maintain a compact size while ensuring stable ignition voltage generation. The electronic circuit and ferrite core transformer are encapsulated with a heat-conductive resin material, improving resistance to temperature variations and overload during operation. The integrated EMC filter helps reduce electromagnetic interference, making the device suitable for systems requiring noise control during operation.

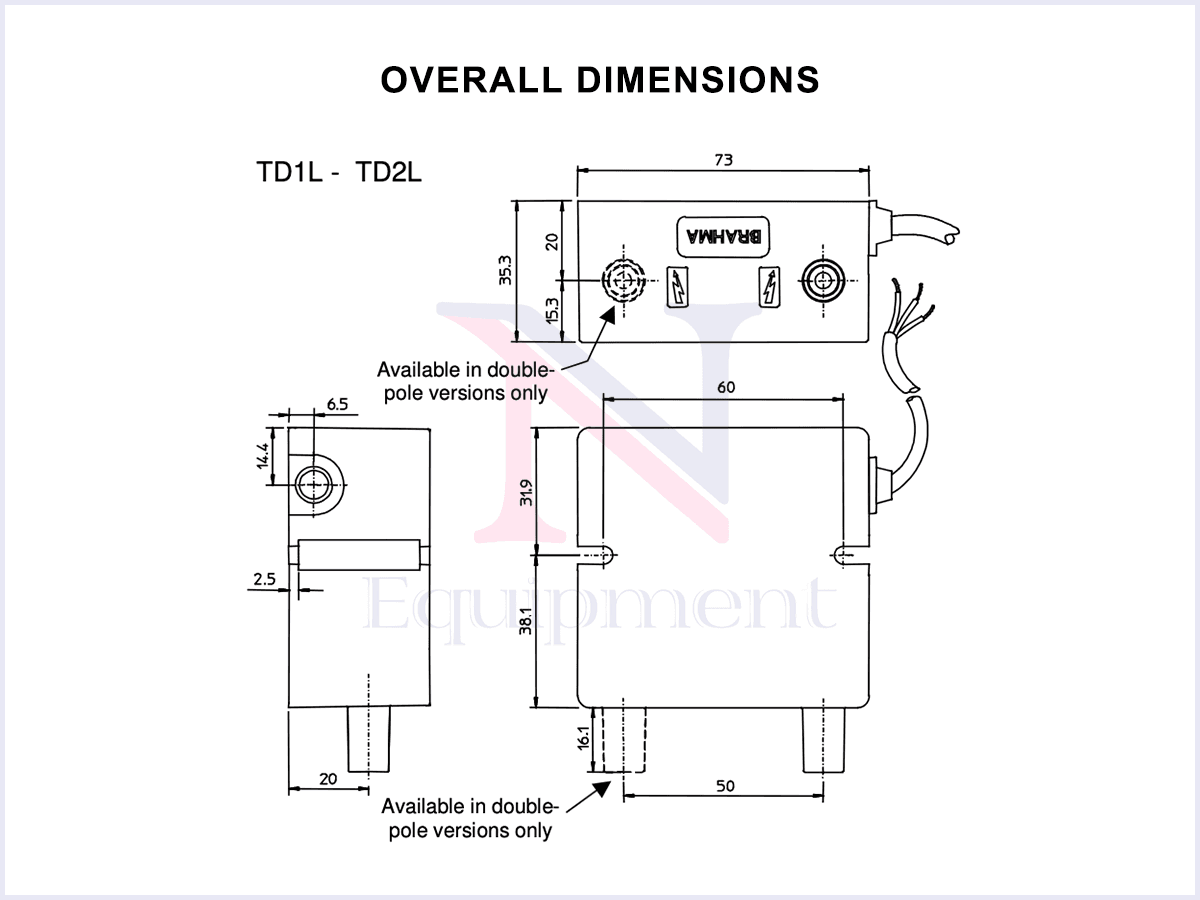

Comparison of Brahma TD Series Versions
The Brahma TD Series includes different configurations based on the number of poles, operating mode, EMC filter, and connection type. The table below highlights the main differences between the available versions within the same series.
| Version Group | Number of Poles | EMC Filter | Operating Mode | Output Voltage | Output Current | Power |
| TD1....A | 1 | Available with or without EMC filter depending on version | Intermittent operation 50% for 2 minutes | 1 × 15 kV | 25 mA | 45 VA |
| TD1....S | 1 | Available with or without EMC filter depending on version | Continuous operation 100% duty cycle | 1 × 15 kV | 25 mA | 45 VA |
| TD2....A | 2 | Available with or without EMC filter depending on version | Intermittent operation 50% for 2 minutes | 2 × 15 kV | 25 mA | 45 VA |
| TD2....S | 2 | Available with or without EMC filter depending on version | Continuous operation 100% duty cycle | 2 × 15 kV | 25 mA | 45 VA |
Applications of Brahma TD1LVCAF Electronic Ignition Transformer
The Brahma TD1LVCAF Electronic Ignition Transformer is suitable for systems requiring a single-pole electronic ignition source with an integrated EMC filter and intermittent operation, including:
- Forced-draught gas burners.
- Light oil burners.
- Heavy oil burners.
- Residential combustion systems.
- Industrial combustion systems.
- Applications requiring a compact electronic ignition transformer with electromagnetic interference reduction capability.
