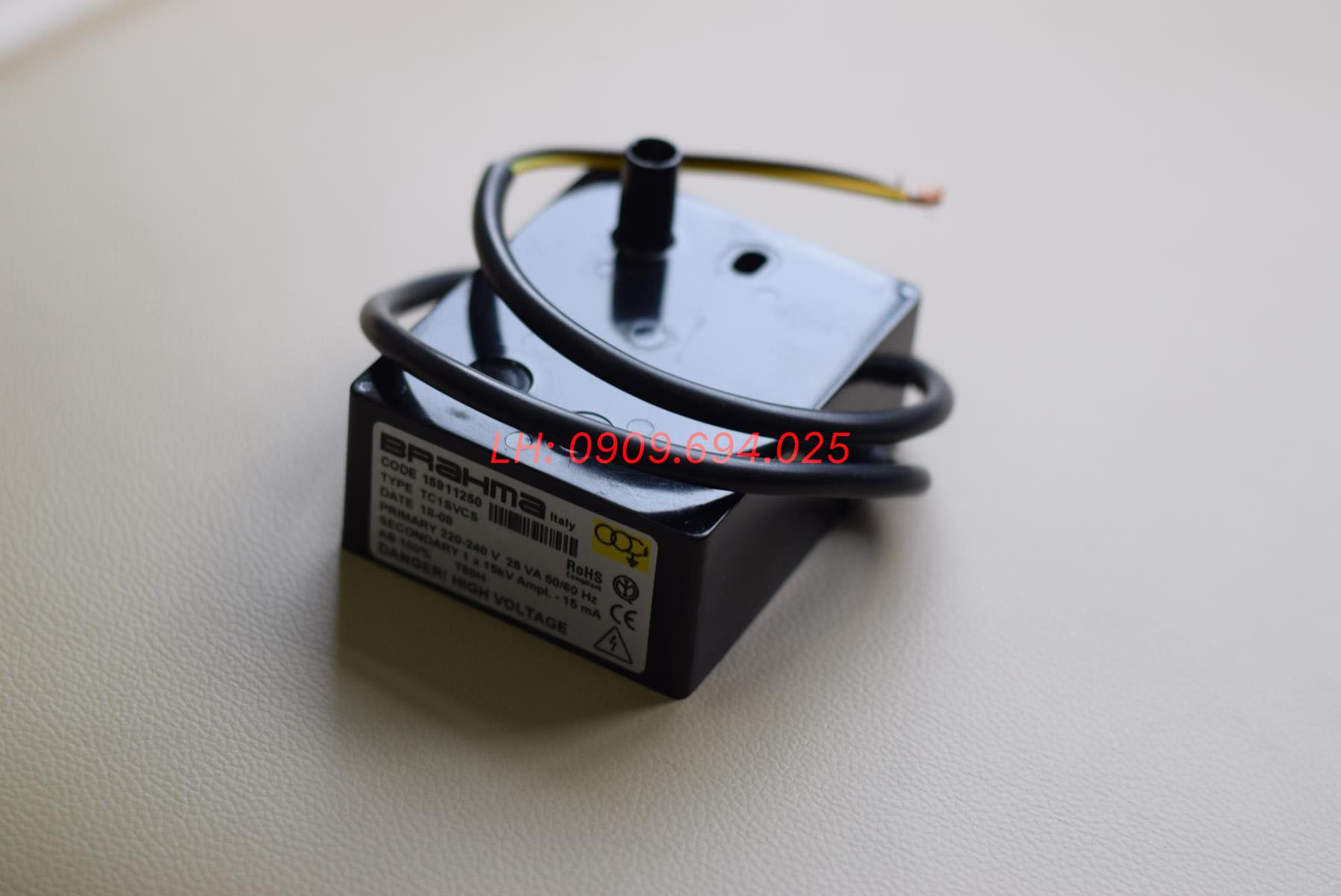

BRAHMA TC1SVCS IGNITION TRANSFORMER
Brahma TC1SVCS ignition transformer, 1x15 kV with continuous duty; designed for gas and oil burners requiring stable, long-lasting ignition.
Product Introduction
TC1SVCS Electronic Ignition Transformer from Brahma is a single-pole electronic ignition transformer belonging to the TC....S Series, designed for continuous operation with a 100% duty cycle. The compact design combines a high-frequency electronic oscillator with a ferrite-core transformer to generate high voltage for ignition, making it suitable for forced draught gas burners, light oil burners, and heavy oil burners in domestic and industrial applications.

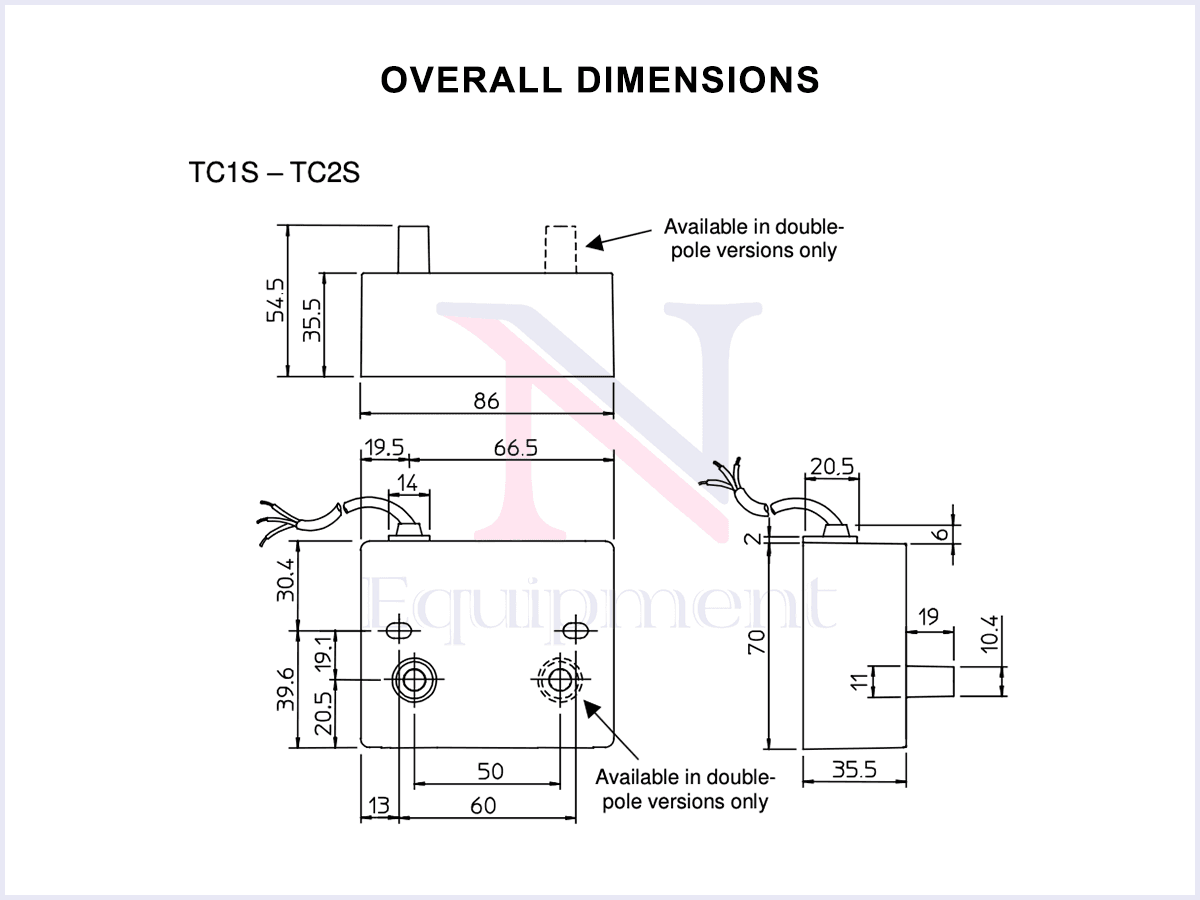

Technical Specifications of Brahma TC1SVCS Ignition Transformer
| Specification | Details |
| Brand | Brahma |
| Series | TC....S Series |
| Model | TC1SVCS |
| Product ID | 15911250 |
| Poles | 1 |
| Supply voltage | 220–240 V / 50 Hz |
| Peak output voltage | 15 kV |
| Rated output voltage | 5.5 kV |
| Rated output current | 15 mA |
| Power consumption | 25 VA |
| Operating mode | Continuous operation |
| Duty cycle | 100% |
| EMC filter | No |
| Operating temperature | −10°C to +60°C |
Operating Principle
The TC1SVCS ignition transformer operates based on a high-frequency electronic oscillator. The voltage generated by the oscillator is then increased through a ferrite-core transformer to create a high-voltage output, supplying energy to the ignition electrode and generating the spark required for burner flame ignition.
The electronic circuit and ferrite-core transformer are encapsulated with a thermally conductive resin, improving resistance to temperature variations and overload conditions during extended operation. The integrated varistor provides protection against voltage surges that may occur on the power supply.
Comparison of Brahma TC....S Series Versions
The versions in the TC....S Series share several common operating characteristics. The table below highlights the main differences between single-pole and double-pole configurations, as well as models with or without EMC filter options.
| Version group | Poles | EMC filter | Rated voltage | Rated current | Output frequency* | Power |
| TC1....S | 1 | No | 5.5 kV | 15 mA | 6 / 10 kHz | 25 VA |
| TC1....SF | 1 | Yes | 5.5 kV | 15 mA | 6 / 10 kHz | 25 VA |
| TC2....S | 2 | No | 2 × 2.8–3.3 kV | 20 mA | 8.5 / 12 kHz | 30 VA |
| TC2....SF | 2 | Yes | 2 × 2.8–3.3 kV | 20 mA | 8.5 / 12 kHz | 30 VA |
Applications of Brahma TC1SVCS Ignition Transformer
The Brahma TC1SVCS ignition transformer is suitable for combustion systems requiring a single-pole electronic ignition source with continuous operation capability, including:
- Forced draught gas burners.
- Light oil burners.
- Heavy oil burners.
- Domestic combustion systems.
- Industrial combustion systems.
- Systems requiring 100% duty cycle operation and continuous high-voltage ignition output.
