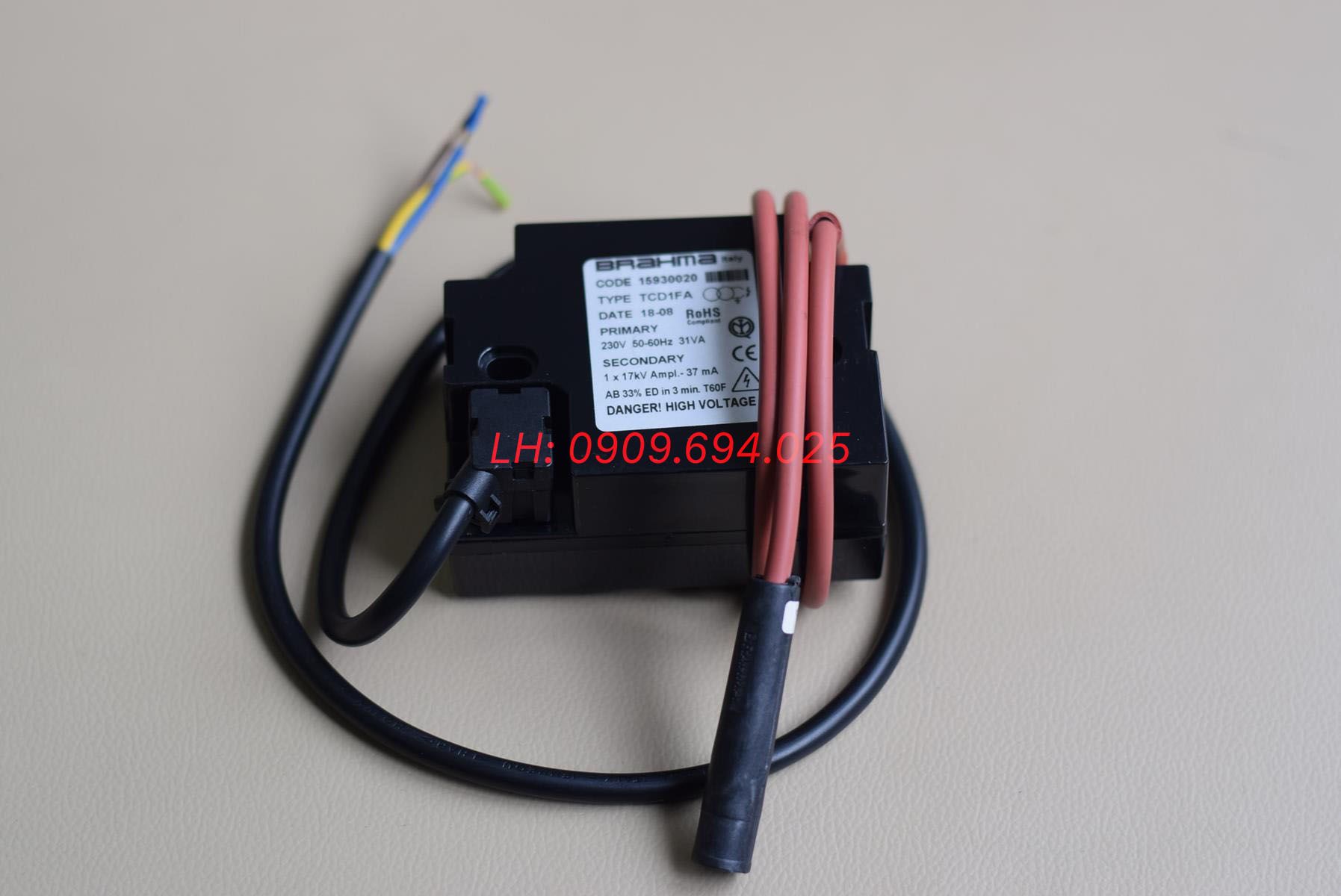

BRAHMA TCD1FA ONE-STAGE IGNITION TRANSFORMER
Brahma TCD1FA single-pole ignition transformer, peak output 17 kV at 230V; provides strong ignition for gas and oil burners in a compact design.
Product Overview
Brahma TCD1FA Single-Pole Electronic Ignition Transformer belongs to Brahma's TCD series and features a compact design for use with forced-draught gas burners and light or heavy oil burners in domestic and industrial applications. The TCD series operates using a high-frequency electronic oscillator combined with a ferrite-core transformer to generate the high voltage required for ignition.
Technical Specifications
| Specification | Details |
| Brand | Brahma |
| Series | TCD |
| Model | TCD1FA |
| Product ID | 15930020 |
| Device Type | Electronic Ignition Transformer |
| Number of Poles | 1 |
| Supply Voltage | 230 V AC, 50–60 Hz |
| Power Connection | Fast-on |
| Peak Output Voltage | 17 kV |
| Rated Output Voltage | 6 kV |
| Peak Output Current | 83 mA |
| Rated Output Current | 37 mA |
| Power Consumption | 31 VA |
| Operating Mode | Non-permanent operation |
| Duty Cycle | 33% over 3 minutes |
| Operating Temperature | −20°C to +60°C |
| Recommended Electrode Distance | 3–5 mm |
| Maximum Ignition Cable Length | 1.5 m |
| Weight | Approx. 250 g |
| Maximum Dimensions | Approx. 87.1 × 65.1 × 40.5 mm |
Operating Principle
The TCD1FA ignition transformer operates using a high-frequency electronic oscillator. The voltage generated by the oscillator is stepped up through a ferrite-core transformer, producing the high-voltage output required by the ignition electrode.
This electronic design allows the TCD series to maintain compact dimensions and low weight while providing high ignition power. The electronic circuit and ferrite-core transformer are embedded in a special resin with high thermal conductivity, helping the device withstand temperature variations and overload caused by prolonged operation.
Comparison of Brahma TCD1FA Voltage Versions
| Specification | 230 V AC | 110–120 V AC | 12 V DC | 24 V DC |
| Peak Output Voltage | 17 kV | 17 kV | 16 kV | 17 kV |
| Rated Output Voltage | 6 kV | 6 kV | 4.8 kV | 8 kV |
| Peak Output Current | 83 mA | 83 mA | 73 mA | 70 mA |
| Rated Output Current | 37 mA | 34 mA | 31 mA | 47 mA |
| Output Voltage Frequency – 30 pF Load | 7 kHz | 7 kHz | 8 kHz | 8 kHz |
| Output Voltage Frequency – Short Circuit | 13 kHz | 13 kHz | 10 kHz | 10 kHz |
| Power Consumption | 31 VA | 28 VA | 29 W | 41 W |
Dimensions and Installation
The TCD series features compact overall dimensions, with maximum dimensions of approximately 87.1 × 65.1 × 40.5 mm. The oval mounting holes allow the fixing distance to be adjusted between 57.6 and 63.2 mm, and M4 or M5 screws can be used to secure the device.
The device can be mounted in any position. During installation, proper grounding must be ensured, high-voltage cables should not be routed next to other cables, and a protection degree suitable for the application should be provided.
Applications of the Brahma TCD1FA Ignition Transformer
The TCD1FA ignition transformer is suitable for combustion systems requiring a compact single-pole electronic ignition source, including:
- Forced-draught gas burners.
- Light oil burners.
- Heavy oil burners.
- Domestic combustion systems.
- Industrial combustion systems.
- Applications requiring a compact single-pole electronic ignition transformer.
