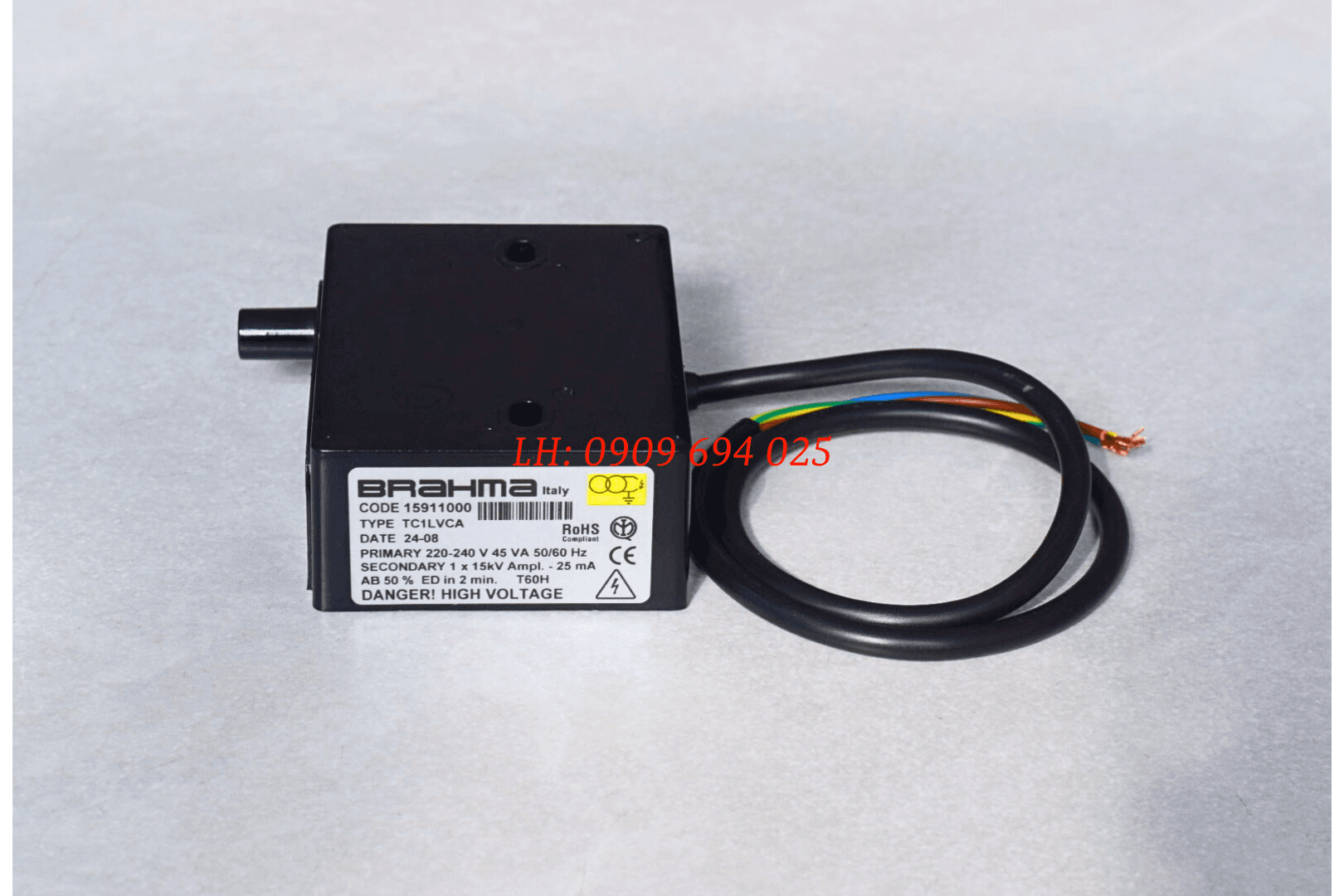

BRAHMA TC1LVCA IGNITION TRANSFORMER
Brahma TC1LVCA ignition transformer, 1x15 kV, 25 mA, 220–240V; delivers stable ignition for gas burners, oil burners, and industrial boilers.
Product Introduction
Brahma TC1LVCA Electronic Ignition Transformer is a single-pole electronic ignition transformer belonging to the TC....S Series. The device is designed for intermittent operation and is suitable for forced-draught gas burners, light oil burners, and heavy oil burners in residential and industrial applications. The TC Series uses a high-frequency electronic oscillator combined with a ferrite core transformer to generate high voltage required for the burner ignition process.

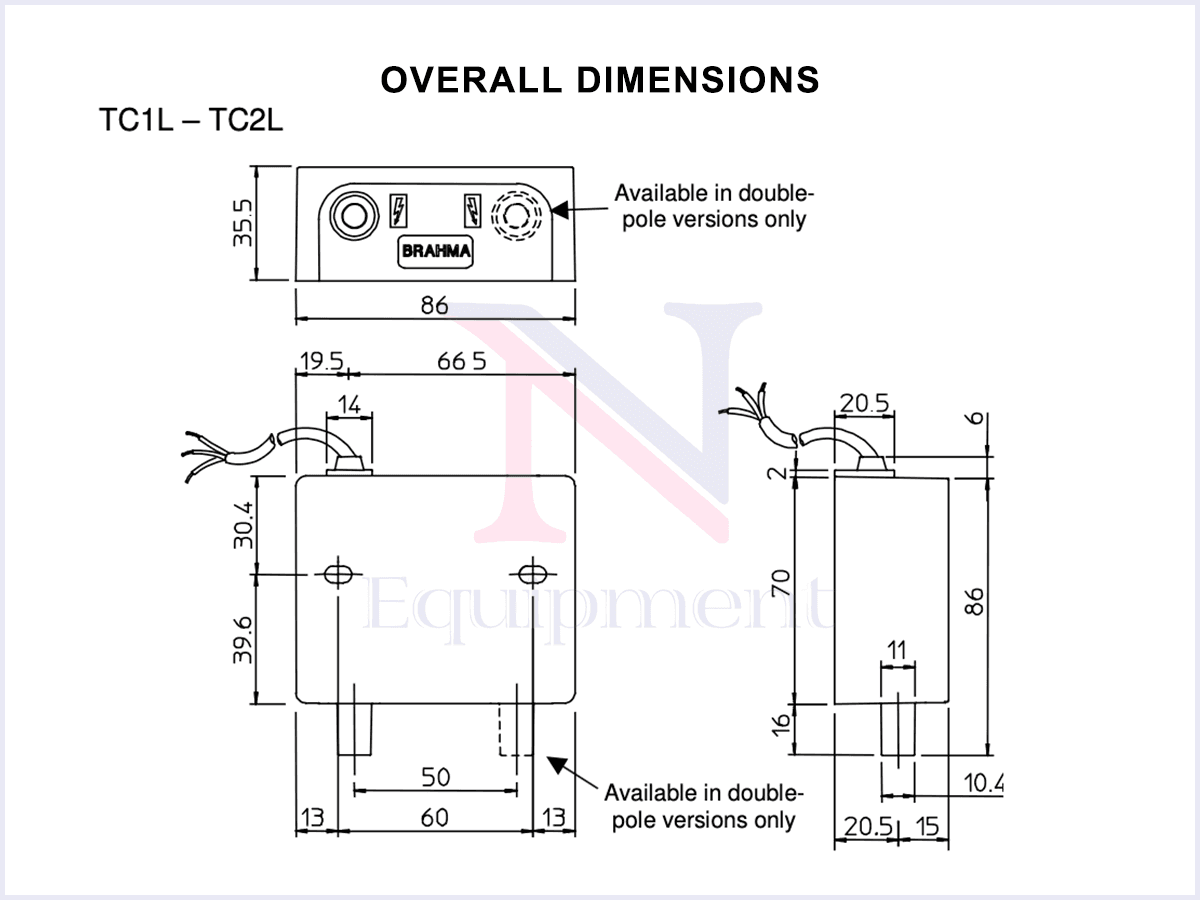

Technical Specifications of Brahma TC1LVCA Ignition Transformer
| Specification | Details |
| Brand | Brahma |
| Series | TC....S Series |
| Model | TC1LVCA |
| Product ID | 15911000 |
| Number of poles | 1 |
| Power supply | 220–240 V / 50 Hz |
| Peak output voltage | 15 kV |
| Rated output voltage | 5.5 kV |
| Rated output current | 15 mA |
| Power consumption | 25 VA |
| Operating mode | Intermittent |
| Duty cycle | 33% |
| EMC filter | No |
| Operating temperature | −10°C to +60°C |
Operating Principle
The Brahma TC1LVCA ignition transformer operates based on a high-frequency electronic oscillator. The voltage generated by the oscillator is increased through a ferrite core transformer to create a high-voltage output, supplying energy to the ignition electrode and generating the spark required for burner flame ignition.
The electronic circuit and ferrite core transformer are encapsulated with a thermally conductive resin material, improving resistance to temperature variations and overload conditions during operation. An integrated varistor provides additional protection against voltage surges that may occur in the power supply.
Comparison of Brahma TC Series Versions
The Brahma TC Series includes different configurations with variations in the number of poles, operating mode, EMC filter options, and connection design. The table below highlights the main differences between the available versions within the same series.
| Version Group | Poles | EMC Filter | Rated Output Voltage | Rated Output Current | Power Consumption |
| TC1....S | 1 | No | 5.5 kV | 15 mA | 25 VA |
| TC1....SF | 1 | Yes | 5.5 kV | 15 mA | 25 VA |
| TC2....S | 2 | No | 2 × 2.8–3.3 kV | 20 mA | 30 VA |
| TC2....SF | 2 | Yes | 2 × 2.8–3.3 kV | 20 mA | 30 VA |
Applications of Brahma TC1LVCA Ignition Transformer
The Brahma TC1LVCA Ignition Transformer is suitable for burner systems requiring a single-pole electronic ignition source with intermittent operation, including:
- Forced-draught gas burners.
- Light oil burners.
- Heavy oil burners.
- Residential combustion systems.
- Industrial combustion systems.
- Applications requiring a compact electronic ignition transformer with suitable operating cycles.
