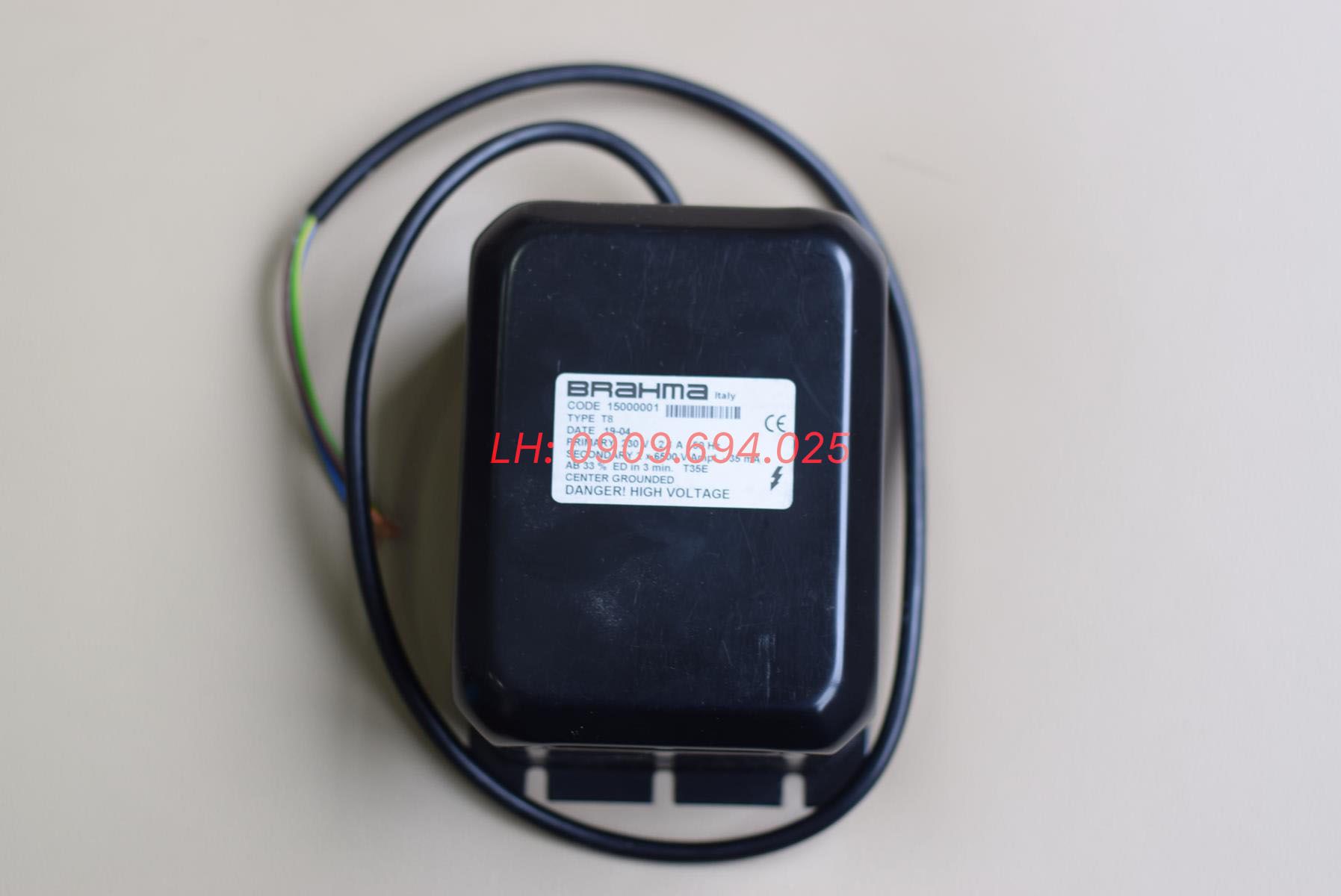

BRAHMA T8 IGNITION TRANSFORMER BRAHMA T8
Brahma T8 ignition transformer, 2-pole design, peak output 2x11 kV and 33% duty cycle; ideal for high-capacity oil burners, boilers, and dryers.
Product Overview
Brahma T8 Ignition Transformer is a 2-pole ignition device designed for high thermal power burners or pressurised burners using light or heavy oil. The T8 model is particularly suitable for systems subject to a high number of restarts, such as steam boilers, cooking ovens, and similar oil burner applications.
The T8 ignition transformer operates on a 220 V – 50 Hz power supply and provides an RMS output voltage of 2 × 6.5 kV and a peak output voltage of 2 × 11 kV. The unit has an effective output current of 33 mA, a power consumption of 460 VA, and a duty cycle of 33% over 3 minutes.
Technical Specifications
| Specification | Details |
| Brand | Brahma |
| Model | T8 |
| Product ID | 15000001 |
| Device Type | Ignition Transformer |
| Number of Poles | 2 |
| Application | Light oil, heavy oil and pressurised burners |
| Supply Voltage | 220 V – 50 Hz |
| RMS Output Voltage | 2 × 6.5 kV |
| Peak Output Voltage | 2 × 11 kV |
| Effective Output Current | 33 mA |
| Effective Input Current | 2.1 A |
| Duty Cycle | 33% over 3 minutes |
| Power Consumption | 460 VA |
| Operating Temperature | −10°C to +35°C |
| Insulation Material | Polyester resin |
| Recommended Electrode Distance | 3–5 mm |
| Standard Supply Cable Length | 700 mm |
| Weight | 3.5 kg |
Operating Principle
The T8 ignition transformer converts the input power supply into high voltage at its two secondary outputs. This high voltage is transmitted to the ignition electrodes to generate an electric spark, enabling ignition of the fuel-air mixture inside the burner.
The T8 model belongs to the column-type transformer series with two primary windings and two secondary windings. The components are separated by a high-insulation separator, while high-voltage insulation is achieved using vacuum-cast polyester resin. The transformer housing is made of stove-enamelled pressed metal.
The recommended distance between the ignition electrodes is 3–5 mm. The standard supply cable length is 700 mm, and the device operates within a temperature range of −10°C to +35°C.
Comparison of Brahma T8 and T18 Ignition Transformers
The T8 and T18 models belong to the same ignition transformer series and have the same overall dimensions, but differ in their electrical characteristics and fixing systems.
| Feature | Brahma T8 | Brahma T18 |
| Number of Poles | 2 | 2 |
| RMS Output Voltage | 2 × 6.5 kV | 2 × 4.5 kV |
| Peak Output Voltage | 2 × 11 kV | 2 × 7.5 kV |
| Effective Output Current | 33 mA | 18 mA |
| Effective Input Current | 2.1 A | 0.9 A |
| Duty Cycle | 33% over 3 minutes | 100% |
| Power Consumption | 460 VA | 200 VA |
| Weight | 3.5 kg | 3.7 kg |
The T8 model has higher output voltage and current than the T18, while the T18 has a 100% duty cycle and is designed for continuous operation. The T8 model is suitable for high thermal power burners or pressurised burners using light or heavy oil, including systems subject to a high number of restarts.
Applications of the Brahma T8 Ignition Transformer
The T8 ignition transformer is used in oil burner applications requiring high ignition power, including:
- Light oil burners.
- Heavy oil burners.
- Pressurised burners.
- High thermal power burners.
- Steam boilers.
- Cooking ovens.
- Systems subject to a high number of restarts.
Installation Notes
Before installing, connecting, or disconnecting the transformer, the power supply must be switched off. The transformer earth and the electrical system earth must be correctly connected, and a single earth point should be arranged to prevent earth conductors from forming ring paths.
The device can be mounted in any position. Ignition cables should be kept as short as possible, routed separately close to ground planes, and high-voltage cables should be kept away from other electrical cables to reduce interference.
