BRAHMA TC2SVCSF IGNITION TRANSFORMER
Brahma TC2SVCSF ignition transformer, 2x12 kV, continuous duty and EMC filter; suitable for reliable industrial gas and oil burner systems.
Product Introduction

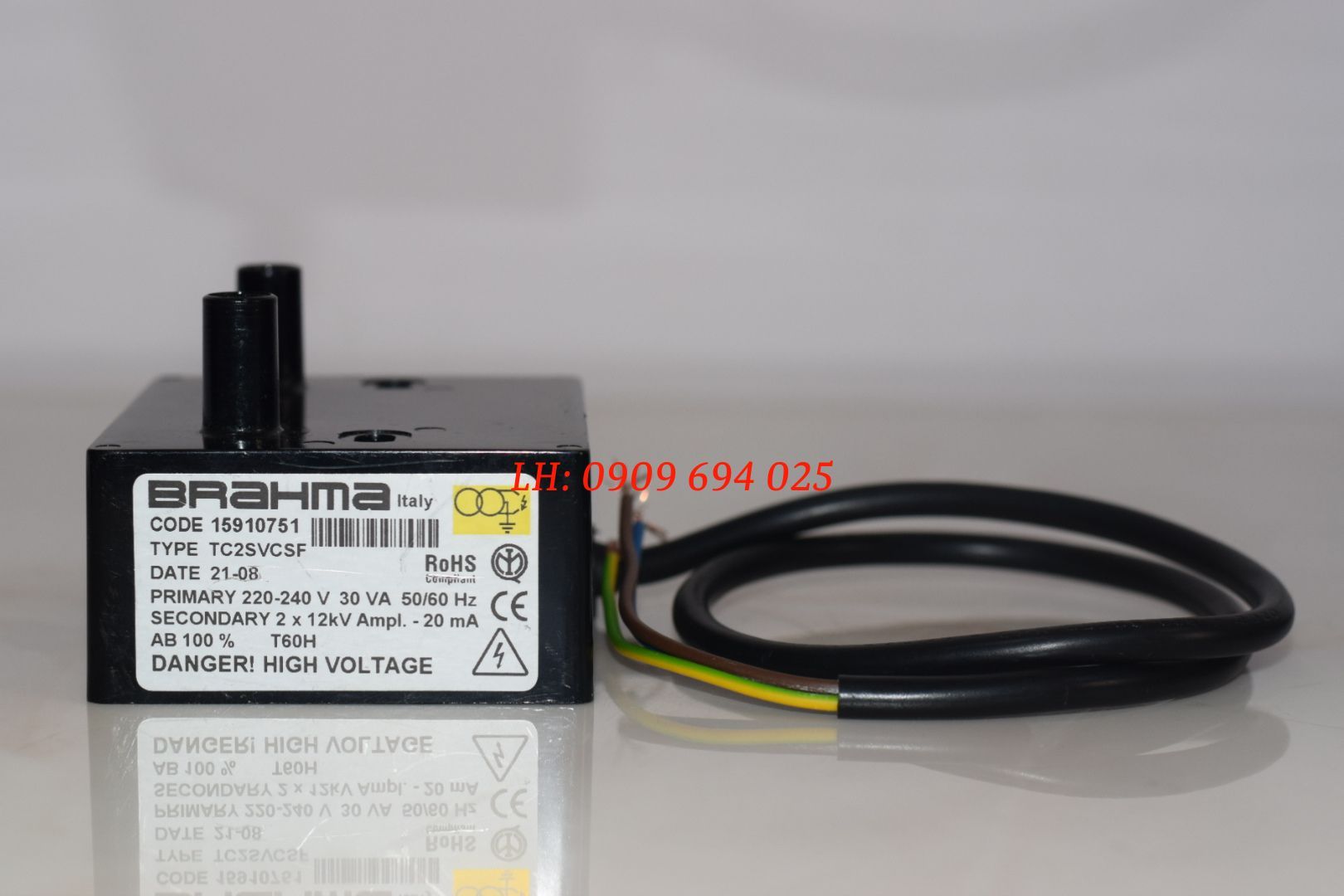

Brahma TC2SVCSF Electronic Ignition Transformer is a two-pole electronic ignition transformer belonging to the Brahma TC....SF Series, integrated with an EMC filter to help reduce electromagnetic interference during operation. The device features a compact design and uses a high-frequency electronic oscillator combined with a ferrite core transformer to generate high voltage for the ignition process.
With a two-pole output configuration and continuous operation capability with a 100% duty cycle, the Brahma TC2SVCSF Electronic Ignition Transformer is suitable for forced-draught gas burners, light oil burners, and heavy oil burners in residential and industrial applications.
Technical Specifications of Brahma TC2SVCSF Electronic Ignition Transformer
| Specification | Details |
| Brand | Brahma |
| Series | TC....SF Series |
| Model | TC2SVCSF |
| Product ID | 15910751 |
| Number of poles | 2 |
| Power supply | 220–240 V / 50–60 Hz |
| Output voltage | 2 × 12 kV |
| Output current | 20 mA |
| Power consumption | 30 VA |
| Operating mode | Continuous operation |
| Duty cycle | 100% |
| EMC filter | Yes |
| Operating temperature | T60H |
Operating Principle
The Brahma TC2SVCSF Electronic Ignition Transformer operates based on a high-frequency electronic oscillator. The voltage generated by the oscillator is then increased through a ferrite core transformer to create high-voltage output at both terminals, supplying energy to the electrode system and generating a spark for burner flame ignition.
The electronic structure allows the device to maintain a compact size while ensuring stable ignition voltage generation. The electronic circuit and ferrite core transformer are encapsulated with a heat-conductive resin material, improving resistance to temperature variations and overload during operation. The integrated EMC filter helps reduce electromagnetic interference, making the device suitable for systems requiring noise control during operation.
Comparison of Brahma TC Series Versions
The Brahma TC Series includes different configurations based on the number of poles, operating mode, and EMC filter options. The table below highlights the main differences between the available versions within the same series.
| Version Group | Number of Poles | EMC Filter | Rated Output Voltage | Rated Output Current | Power |
| TC1....S | 1 | No | 5.5 kV | 15 mA | 25 VA |
| TC1....SF | 1 | Yes | 5.5 kV | 15 mA | 25 VA |
| TC2....S | 2 | No | 2 × 2.8–3.3 kV | 20 mA | 30 VA |
| TC2....SF | 2 | Yes | 2 × 2.8–3.3 kV | 20 mA | 30 VA |
Applications of Brahma TC2SVCSF Electronic Ignition Transformer
The Brahma TC2SVCSF Electronic Ignition Transformer is suitable for systems requiring a two-pole electronic ignition source with an integrated EMC filter, including:
- Forced-draught gas burners.
- Light oil burners.
- Heavy oil burners.
- Residential combustion systems.
- Industrial combustion systems.
- Applications requiring a two-pole electronic ignition transformer with continuous operation capability and electromagnetic interference reduction.
